6×36WS FC IWRC Steel Wire Rope Cable
1. Rope Construction: 6×36WS+IWRC, 6×36WS+FC
( Steel Core and Fiber Core available for Customization based on your request.)
2. Surface: Galvanized/ Ungalavized (Bright)
3. Rope Nominal Diameter: 10mm~120mm
4. Nominal Tensile Strength: 1570Mpa~2160Mpa
5. Packing: Normally 1000m/reel. (Can be customized according to different customer needs)
6. Standards: Perform national and international standards, GB/T20118, EN, GOST, API.
Features
6×36WS steel wire rope cable designing with a robust rope construction. With its tensile strength, making it a good choice for demanding tasks that require reliable load-bearing capabilities.
1. Easy use: flexible, allowing for easy handling and installation even in tight spaces or complex configurations.
2. Abrasion resistance: can withstand harsh environments. Even in the most rugged conditions, ensuring its longevity and durability .
3. Corrosion protection: support specialized coatings and surface treatments. For example, the oil lubrication, galvanized.
4. Customization suport: According to your specific requirements, support customization options for length, diameter, and fittings.
Specifications
Extensive product range includes wire ropes for various applications, for example, lifting, towing, hoisting, and suspension.
From compacted ropes for heavy-duty lifting to non-rotating ropes for precision operations, we offer a wide selection in order to cater to diverse industry needs.
| Rope Diameter (mm) | Weight (kg/100m) | Rope Grade | ||||||||||||
| 1570 | 1670 | 1770 | 1870 | 1960 | 2160 | |||||||||
| Minimum Breaking Forece (kN) | ||||||||||||||
| FC | IWRC | FC | IWRC | FC | IWRC | FC | IWRC | FC | IWRC | FC | IWRC | FC | IWRC | |
| 10 | 38.0 | 41.8 | 51.8 | 55.9 | 55.1 | 59.5 | 58.4 | 63 | 61.7 | 66.6 | 64.7 | 69.8 | 71.3 | 76.9 |
| 11 | 46.0 | 50.6 | 62.7 | 67.6 | 66.7 | 71.9 | 70.7 | 76.2 | 74.7 | 80.6 | 78.3 | 84.4 | 86.2 | 93.0 |
| 12 | 54.7 | 60.2 | 74.6 | 80.5 | 79.4 | 85.6 | 84.1 | 90.7 | 88.9 | 96.0 | 93.1 | 100 | 103 | 111 |
| 13 | 64.2 | 70.6 | 87.6 | 94.5 | 93.1 | 100 | 98.7 | 106 | 104 | 113 | 109 | 118 | 120 | 130 |
| 14 | 74.5 | 81.9 | 102 | 110 | 108 | 117 | 114 | 124 | 121 | 130 | 127 | 137 | 140 | 151 |
| 16 | 97.3 | 107 | 133 | 143 | 141 | 152 | 150 | 161 | 158 | 170 | 166 | 179 | 182 | 197 |
| 18 | 123 | 135 | 168 | 181 | 179 | 193 | 189 | 204 | 200 | 216 | 210 | 226 | 231 | 249 |
| 20 | 152 | 167 | 207 | 224 | 220 | 238 | 234 | 252 | 247 | 266 | 259 | 279 | 285 | 308 |
| 22 | 184 | 202 | 251 | 271 | 267 | 288 | 283 | 305 | 299 | 322 | 313 | 338 | 345 | 372 |
| 24 | 219 | 241 | 298 | 322 | 317 | 342 | 336 | 363 | 355 | 382 | 373 | 402 | 411 | 443 |
| 26 | 257 | 283 | 350 | 378 | 373 | 402 | 395 | 426 | 417 | 450 | 437 | 472 | 482 | 520 |
| 28 | 298 | 328 | 406 | 438 | 432 | 466 | 458 | 494 | 484 | 522 | 507 | 547 | 559 | 603 |
| 30 | 342 | 376 | 466 | 503 | 496 | 535 | 526 | 567 | 555 | 599 | 582 | 628 | 642 | 692 |
| 32 | 389 | 428 | 531 | 572 | 564 | 609 | 598 | 645 | 632 | 682 | 662 | 715 | 730 | 787 |
Advantages
1.Comprehensive Range of 6×36 Steel Wire Rope Cables
2. Advanced Manufacturing Equipment
Equipped with large, medium and small wire rope manufacturing workshops with advanced technology, sophisticated equipment and complete product varieties.
3. Production Capacity
Annual production capacity over 100,000 ton. As well as one of the professional manufacturing bases of wire rope with wide production volume and specifications.
3. Well-experienced and Professional Team
Customized solutions for your unique requirements. Our experienced team will work closely with you in order to ensure optimal performance and safety.
4. Perform Standards
Perform national and international standards, such as GB/T20118, EN, GOST, API.
5. High Quality Control
Strict quality control before, in and after production. In other words, authoritative testing report can be provided, ensuring steel wire rope transmit long distance load.

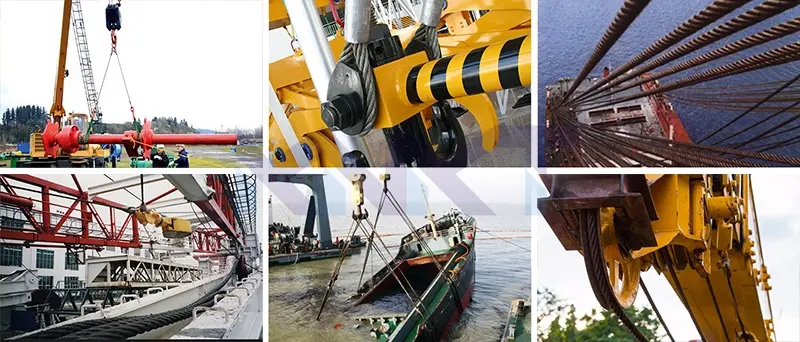

Applications
It is widely used in a variety of lifting, hoisting, and traction equipmen.
As well as the metallurgical, and machinery construction field. Such as cranes, construction machinery, shaft lifting, inclined shaft lifting, port loading and unloading, shipbuilding, transportation, mining industry, petroleum, and marine engineering, etc.
Manufacturing Process
Firstly, Wire Rod Drawing: Drawing through a series of dies to reduce diameter to customers’ requirements.
Then, Wire Rope Stranding: Multiple wires strand and twist together to form wire rope cables.
Next, Surface Treatment: Dpending on the specific request and application, such as oil lubrication or bright or galvanized wire rope.
Last but not least: Testing and Quality Control: Perform rigorous testing before shipping to customer. In order to make sure its strength, durability, and performance characteristics.
Finally, Packing And Ready For Delivery.

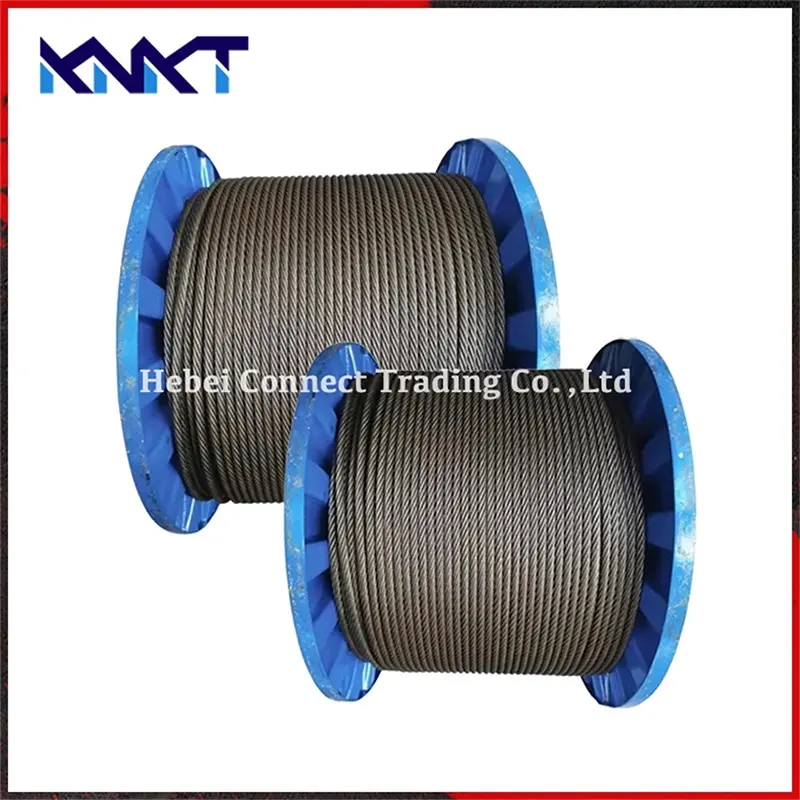

Packing Sample
Standard export packing: Wooden Reel and Steel Wheel Reel
Or Contact us for customized packaging according to customer needs
Why choose us?
2. Standard: Perform national and international standards, such as GB/T20118, EN , GOST, API.
3. Well-experienced: Professional and full experienced sales can help you solve difficulties. So as to find the most favorable type of wire rope, better meet your request.
4. High quality: Strict quality control before, in and after production.
5. Fast response, Quick delivery: If any question, you can leave message or call us directly.
Export Experience
Our steel wire ropes are widely exporting, for example, to Russia, Japan, Canada, Brazil, Mexico, Europe, Australia and other countries.
Aiming to provide the high-quality and competitive price lifting products. In order to helping you reduce cost, solving your lifting problems.
